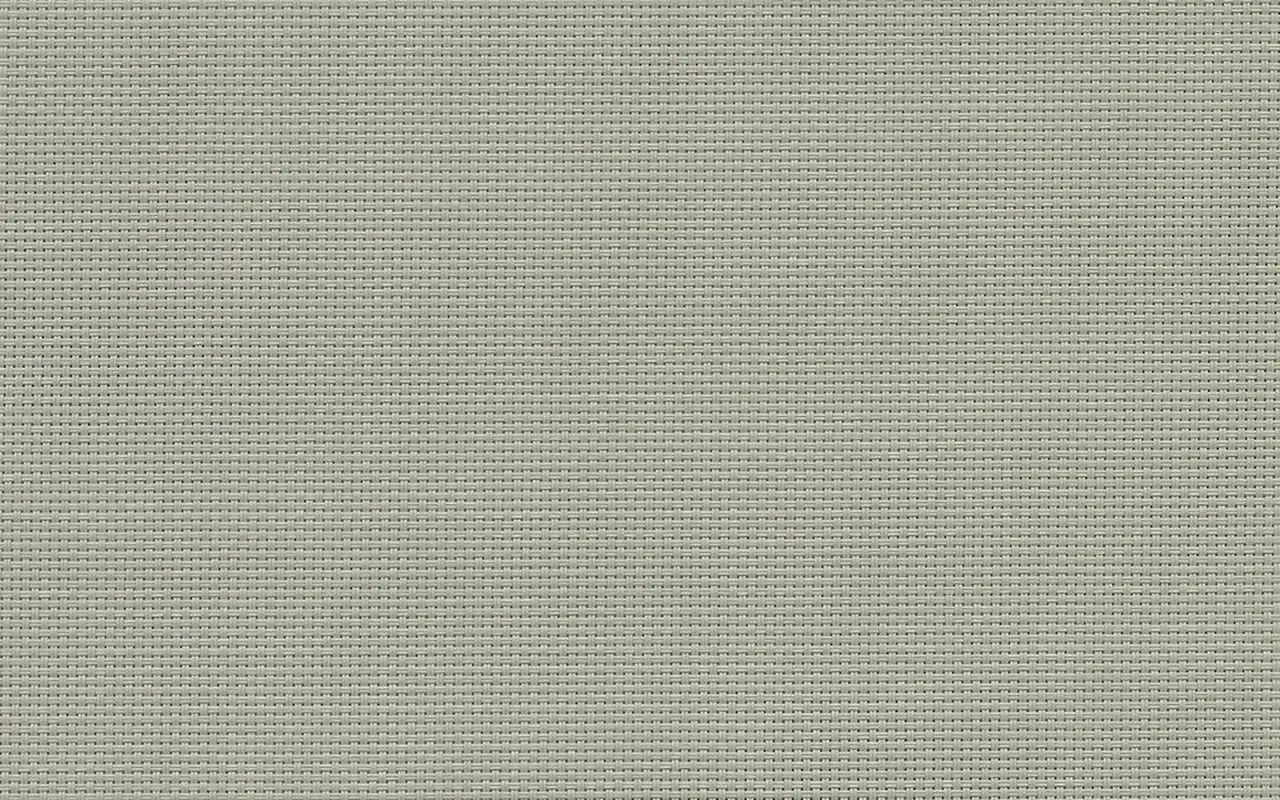

Phifer SheerWeave 2000/2100 Fabric
20 colourways, openness 5%, 10%, solar screen, up to 126 inches wide. Every swatch and every published specification, from the workroom that cuts Phifer in Fort Lauderdale and installs it from Miami to Palm Beach.
The plain fiberglass basketweave, at 5% and 10%
SheerWeave 2000 and 2100 are the same vinyl-coated fiberglass basketweave in two openness factors: Style 2000 at 5% and Style 2100 at 10%. The composition is 37% fiberglass and 63% vinyl on fiberglass, the weave is 0.021 inches thick, and Phifer publishes UV blockage of about 95% for the 5% and about 90% for the 10%. Style 2000 comes 63, 98 and 126 inches wide; Style 2100 stops at 98. Ten colours run across both, from White and Bone through Platinum and Bronze to the three Charcoals.
This is a screen for keeping the view rather than killing the glare. Visible transmission runs from 6% in Charcoal, Charcoal/Chestnut and Bronze up to 16% in plain White, and solar reflectance from 4% in Charcoal to 67% in White, so the choice of colour changes the fabric's behaviour more than the choice of style does. Phifer lists a Microban antimicrobial additive, GREENGUARD Gold certification, RoHS and REACH compliance, and a full fire set: California Title 19, NFPA 701 TM#1 and TM#2, NFPA 101 Class A, IBC Section 803.1.1 Class A, BS 5867 Part 2 Type B and CAN/ULC-S 109.
What SheerWeave 2000/2100 does on your glass, and what it does not
Best use
Style 2000 at 5% is the one to specify on shaded glass, north and east elevations, a courtyard window or a lanai under a deep overhang. Style 2100 at 10% belongs on a stair landing or a garden room where daylight is the point. Phifer lists both for Roman shades and panel tracks, so a wide opening can be a panel track rather than one long roller.
Privacy
Daytime only, and not much of it at 5% and 10%. Someone close to the glass in daylight will read shapes through it, most easily in Charcoal, which sees out best and hides least. White and Bone cover more by day and see out less. After dark, with the lamps on, the balance reverses and the room is visible from the street. For night privacy, run a blackout layer behind on a dual roller.
Glare control
Neither weave is a glare fabric. At these openness factors the sun still reaches a monitor, and a low sun in line with the window still shows as a disc through the weave. If a screen faces the glass, Charcoal or Bronze at 5% is the only sensible pick here. Where glare is the actual complaint, step to a 1% or 3% weave instead.
Limitations
It will not darken a room, and at 10% openness it lets more heat and UV through than the tighter weaves: Phifer publishes about 90% UV blockage for Style 2100 against about 95% for Style 2000. Style 2100 also stops at a narrower roll, so a wide slider becomes two shades. For a bedroom, put a blackout shade at the glass instead.
SheerWeave 2000/2100
10 colours, 20 colourways. Openness 5%, 10%; up to 126 in wide; fire listed.
Colourways
2000 · 5%2100 · 10%
2000 · 5%2100 · 10%
2000 · 5%2100 · 10%
2000 · 5%2100 · 10%
2000 · 5%2100 · 10%
2000 · 5%2100 · 10%
2000 · 5%2100 · 10%
2000 · 5%2100 · 10%
2000 · 5%2100 · 10%
2000 · 5%2100 · 10%
Every SheerWeave 2000/2100 colourway, with Phifer's published figures
| Swatch | Colour | Code | Openness | Tv | Ts | Rs | As | SHGC single | SHGC insul. | Width | Docs |
|---|---|---|---|---|---|---|---|---|---|---|---|

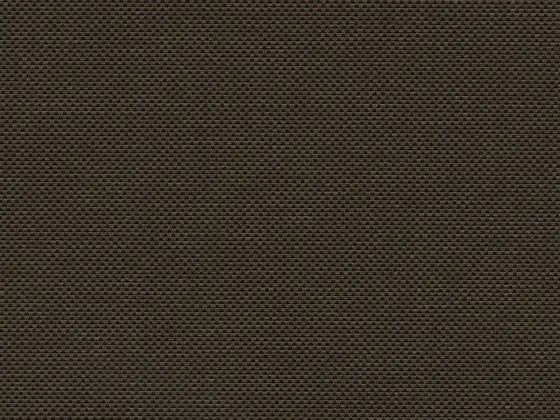

| Charcoal / Chestnut | 2000 V24 | 5% | 6 | 6 | 7 | 87 | 0.59 | 0.44 | 126 in | Swatch card (PDF) · Phifer product page | |

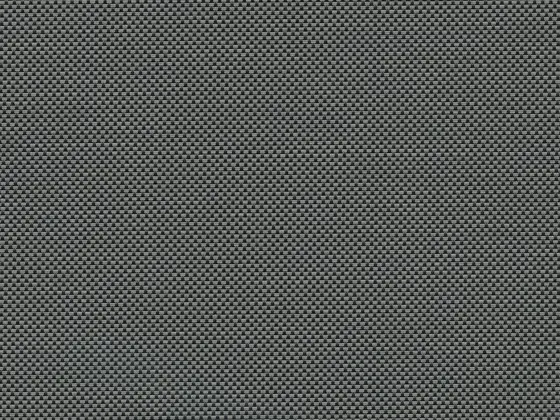

| Charcoal / Gray | 2000 V22 | 5% | 7 | 7 | 9 | 84 | 0.58 | 0.44 | 126 in | Swatch card (PDF) · Phifer product page | |

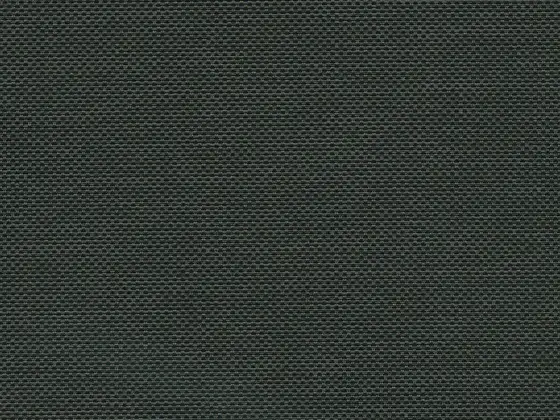

| Charcoal | 2000 V21 | 5% | 6 | 6 | 4 | 90 | 0.61 | 0.44 | 126 in | Swatch card (PDF) · Phifer product page | |

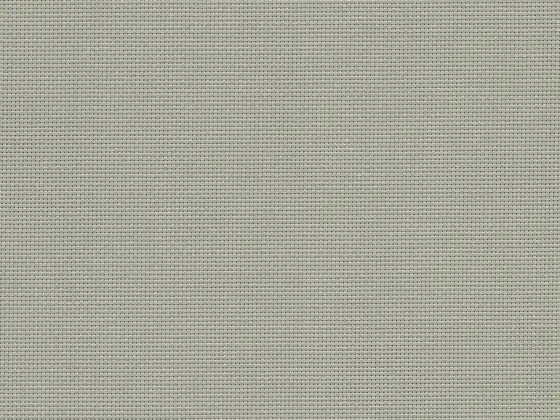

| Platinum | 2000 V04 | 5% | 9 | 10 | 35 | 55 | 0.45 | 0.37 | 126 in | Swatch card (PDF) · Phifer product page | |

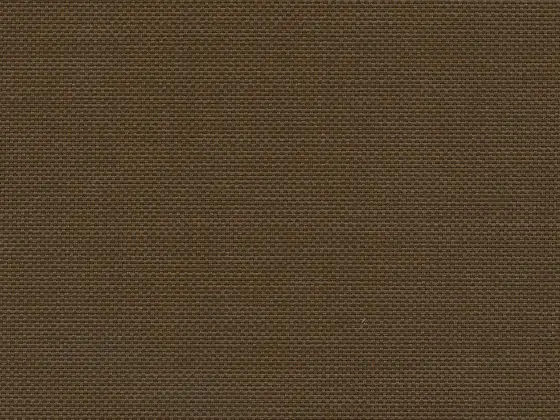

| Bronze | 2000 Q10 | 5% | 6 | 5 | 7 | 88 | 0.59 | 0.44 | 126 in | Swatch card (PDF) · Phifer product page | |

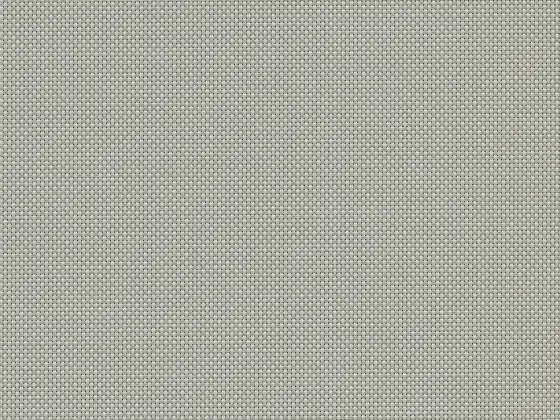

| Bone / Platinum | 2000 Q06 | 5% | 10 | 12 | 43 | 45 | 0.41 | 0.34 | 126 in | Swatch card (PDF) · Phifer product page | |

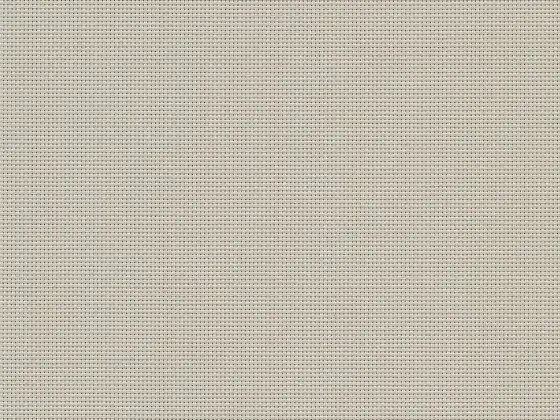

| Bone | 2000 Q05 | 5% | 12 | 18 | 55 | 27 | 0.36 | 0.31 | 126 in | Swatch card (PDF) · Phifer product page | |

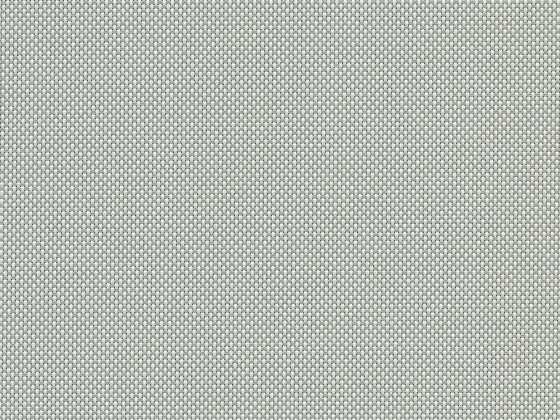

| White / Platinum | 2000 P05 | 5% | 11 | 13 | 49 | 38 | 0.38 | 0.32 | 126 in | Swatch card (PDF) · Phifer product page | |

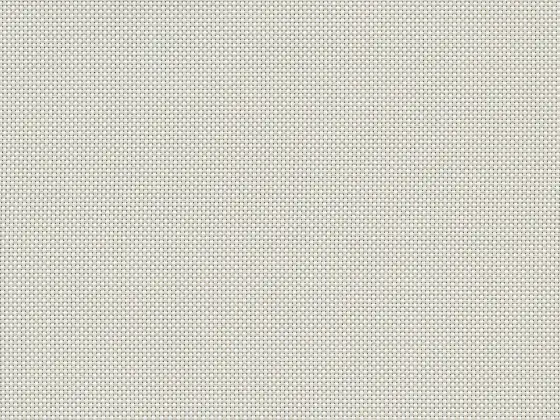

| White / Bone | 2000 P04 | 5% | 13 | 18 | 61 | 21 | 0.32 | 0.30 | 126 in | Swatch card (PDF) · Phifer product page | |

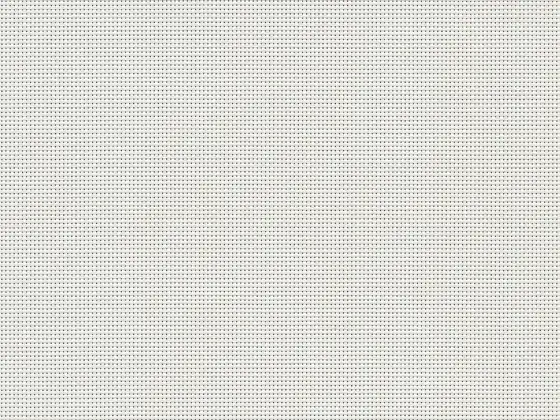

| White | 2000 P02 | 5% | 16 | 20 | 67 | 13 | 0.30 | 0.28 | 126 in | Swatch card (PDF) · Phifer product page | |

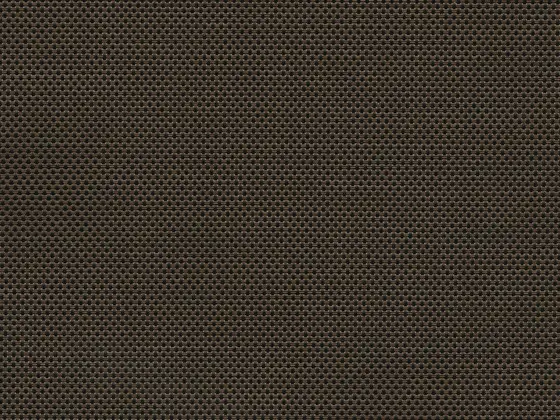

| Charcoal / Chestnut | 2100 V24 | 10% | 12 | 11 | 6 | 83 | 0.61 | 0.44 | 98 in | Swatch card (PDF) · Phifer product page | |

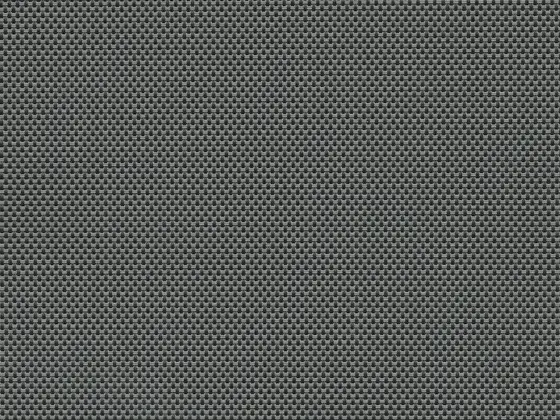

| Charcoal / Gray | 2100 V22 | 10% | 12 | 11 | 8 | 81 | 0.60 | 0.44 | 98 in | Swatch card (PDF) · Phifer product page | |

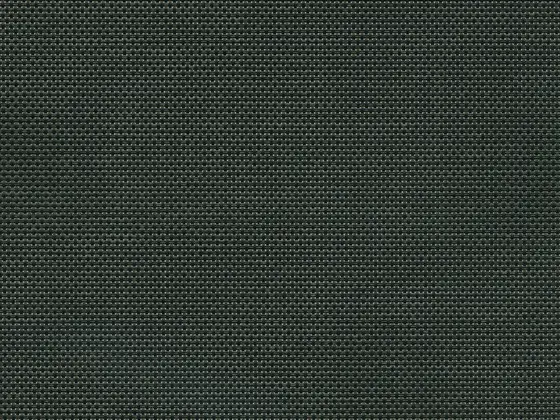

| Charcoal | 2100 V21 | 10% | 10 | 9 | 4 | 87 | 0.62 | 0.44 | 98 in | Swatch card (PDF) · Phifer product page | |

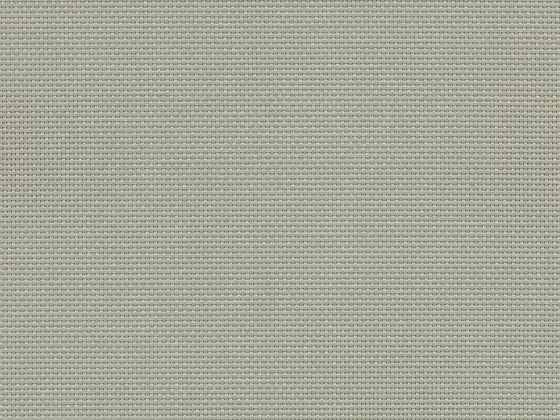

| Platinum | 2100 V04 | 10% | 9 | 10 | 31 | 59 | 0.47 | 0.37 | 98 in | Swatch card (PDF) · Phifer product page | |

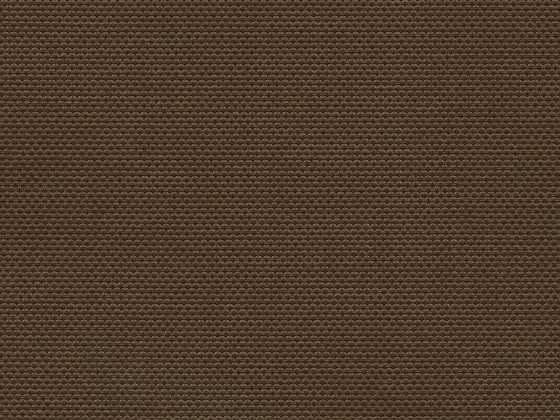

| Bronze | 2100 Q10 | 10% | 9 | 8 | 5 | 87 | 0.61 | 0.44 | 98 in | Swatch card (PDF) · Phifer product page | |

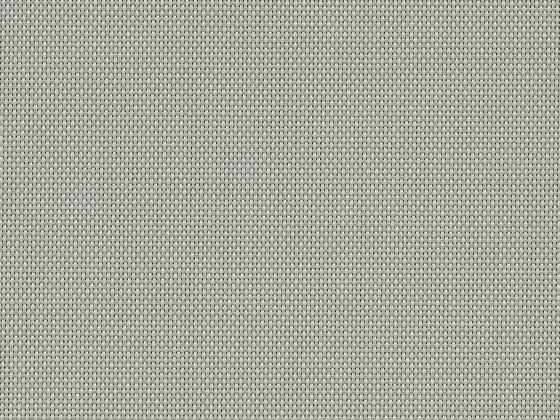

| Bone / Platinum | 2100 Q06 | 10% | 14 | 16 | 38 | 46 | 0.44 | 0.36 | 98 in | Swatch card (PDF) · Phifer product page | |

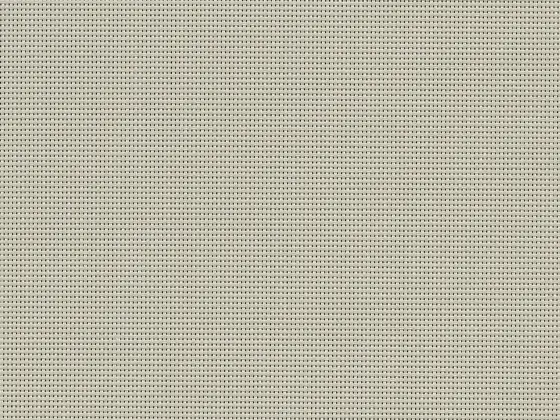

| Bone | 2100 Q05 | 10% | 15 | 19 | 44 | 37 | 0.42 | 0.35 | 98 in | Swatch card (PDF) · Phifer product page | |

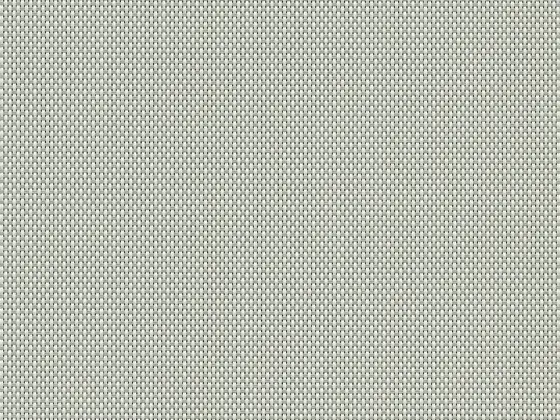

| White / Platinum | 2100 P05 | 10% | 12 | 16 | 47 | 37 | 0.40 | 0.33 | 98 in | Swatch card (PDF) · Phifer product page | |

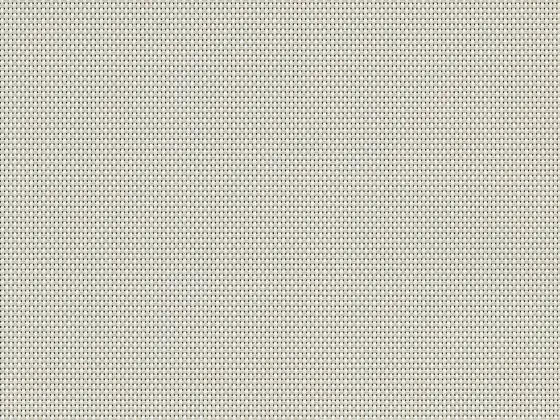

| White / Bone | 2100 P04 | 10% | 14 | 19 | 54 | 27 | 0.37 | 0.31 | 98 in | Swatch card (PDF) · Phifer product page | |

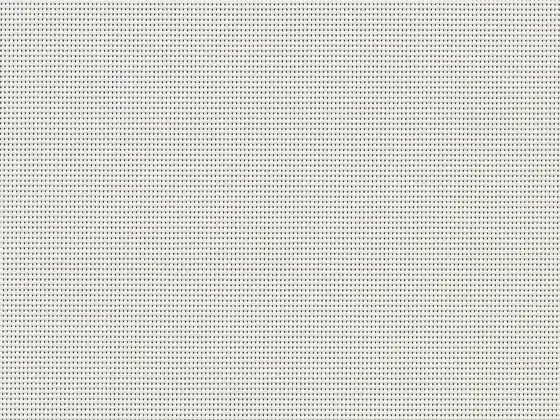

| White | 2100 P02 | 10% | 16 | 22 | 60 | 18 | 0.34 | 0.30 | 98 in | Swatch card (PDF) · Phifer product page |
Tv = visible light transmitted, Ts = solar energy transmitted, Rs = solar energy reflected, As = solar energy absorbed, in percent, as published by Phifer for the fabric on its own. SHGC single = solar heat gain coefficient of the fabric behind single 1/4 in clear glass (1/8 in where that is what Phifer publishes), SHGC insul. = behind 1 in insulating glass with a high-performance coating (1/2 in clear where published). Exterior SunTex and SunScreen figures are for the fabric installed outside the glass at a 30 degree profile angle. We bring the sample books to the consultation.
Where SheerWeave 2000/2100 works here
At 5% and 10% these are north-elevation and shaded-glass fabrics for us, or a covered terrace where the sun never lands square on the window. On an east or west wall in Fort Lauderdale we would go to the 2500 family instead and take 1% or 3% in the same colour language. Where the room is bright and the point is to soften it without losing the water, White/Bone at 5% is the one we show.
Same fiberglass family as SheerWeave 2500/2410/2390/2360, but only in the two open weaves; the 2500 card adds 1% and 3% and a wider colour range.
SheerWeave 2000/2100: frequently asked
Is Style 2000 or 2100 the more open fabric?
Style 2100 is 10% open, Style 2000 is 5%. The 10% keeps more view and more daylight and stops less heat; the 5% is the more useful of the two on real South Florida glass. If you need tighter than that, the 2500 family gives 1% and 3% in a similar fiberglass weave.
How wide can one shade be?
126 inches in Style 2000, which covers most sliders in one piece, and 98 inches in Style 2100. Beyond that an opening takes two shades on one headrail with the joint set at a mullion.
How wide can a Phifer SheerWeave 2000/2100 shade be?
Phifer publishes standard roll widths of 63", 98" and 126" (160 cm, 248.9 cm and 320 cm); 63" and 98" (160 cm and 248.9 cm) for SheerWeave 2000/2100, so a single shade can run to about 126 inches wide before a seam or a second shade is needed. Wider openings are covered with two shades on one headrail programmed to move together, or with a seam placed where the mullion hides it. We confirm the exact limit for the chosen system when we measure.
Which shades can be made in SheerWeave 2000/2100?
SheerWeave 2000/2100 is made up as roller shades, roman shades and panel tracks. We source it directly from Phifer, so the same weave goes on Lutron, Somfy, Crestron or Vertilux motors or a manual chain, cut and finished in our Fort Lauderdale workroom and installed by our own team from Miami to Palm Beach.
Can I see SheerWeave 2000/2100 samples before ordering?
Yes. We keep the Phifer sample books in the Fort Lauderdale workroom (4539 Powerline Rd, by appointment) and the Miami Beach showroom (500 South Pointe Dr #150), and we bring the colours you shortlist to the in-home consultation so you can hold them against your glass in your own light.
